Pix Slimframe acoustic art panel (your own design)
Your artwork, printed directly onto 25 mm PET. A thin black felt strip covers the side edges, giving your personal acoustic picture a clean outline.

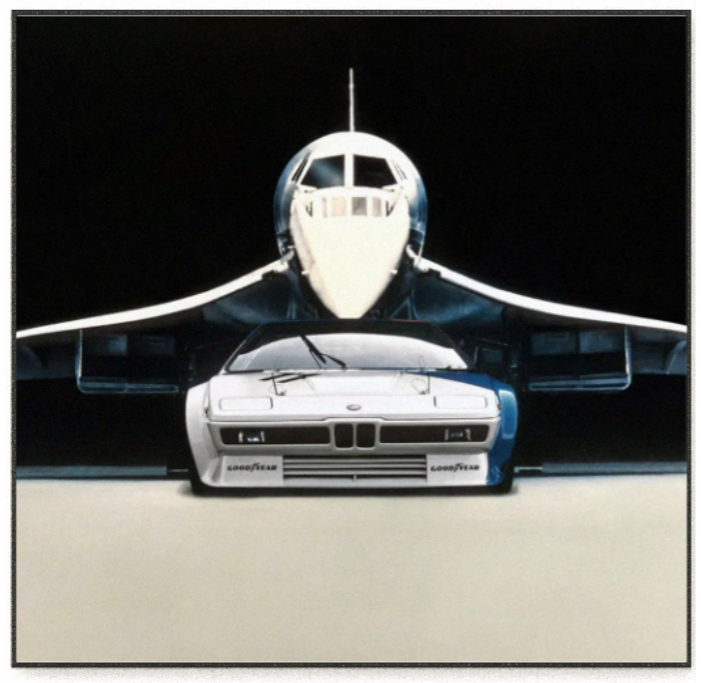

The artwork shown is for inspiration. Your PIX Slim Frame is made with your own image.
We print this acoustic picture with your own artwork. Choose the size and motif above – we will calculate an individual quote for you.
DIRECT PRINT. BLACK FELT EDGE.
Your picture, down to the details.

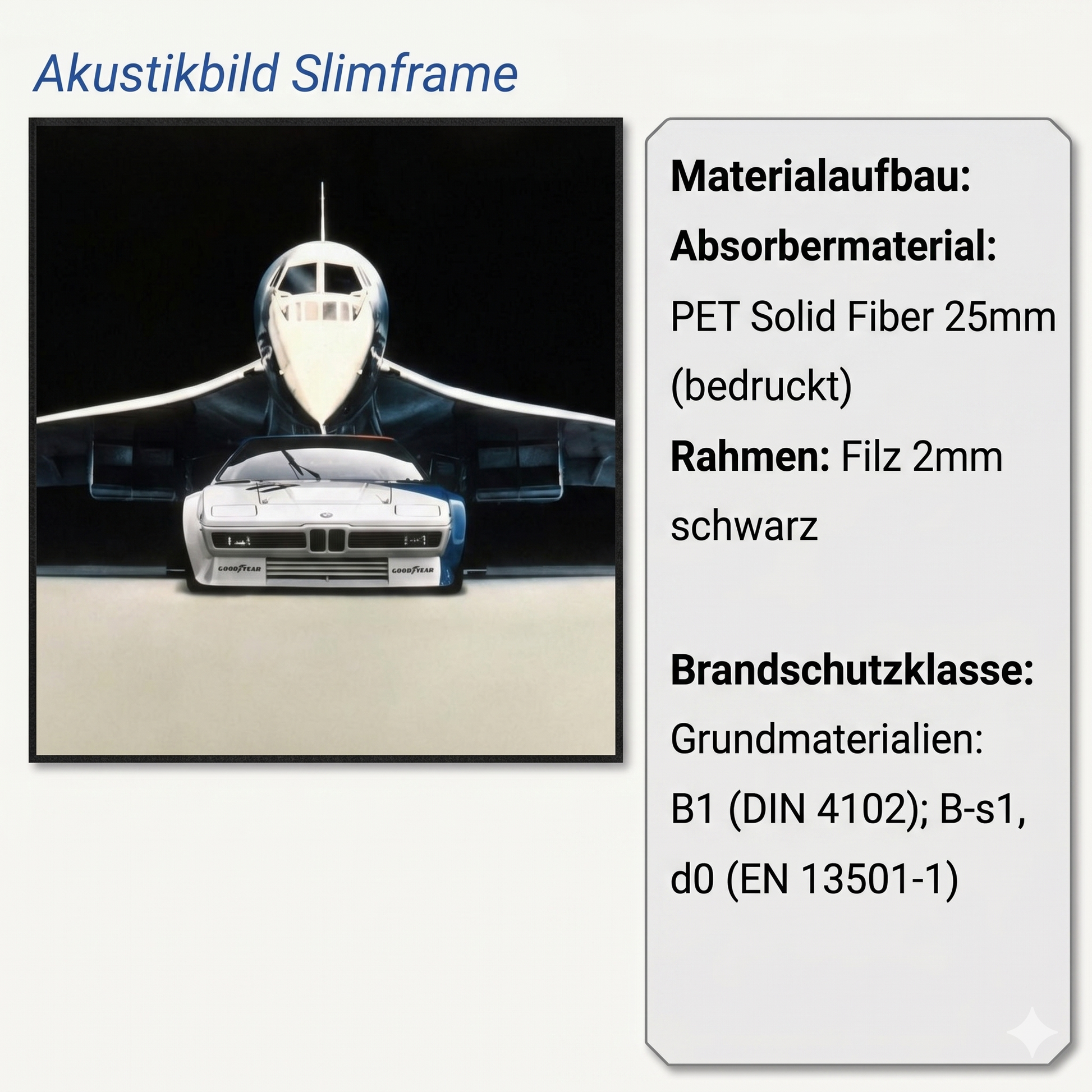

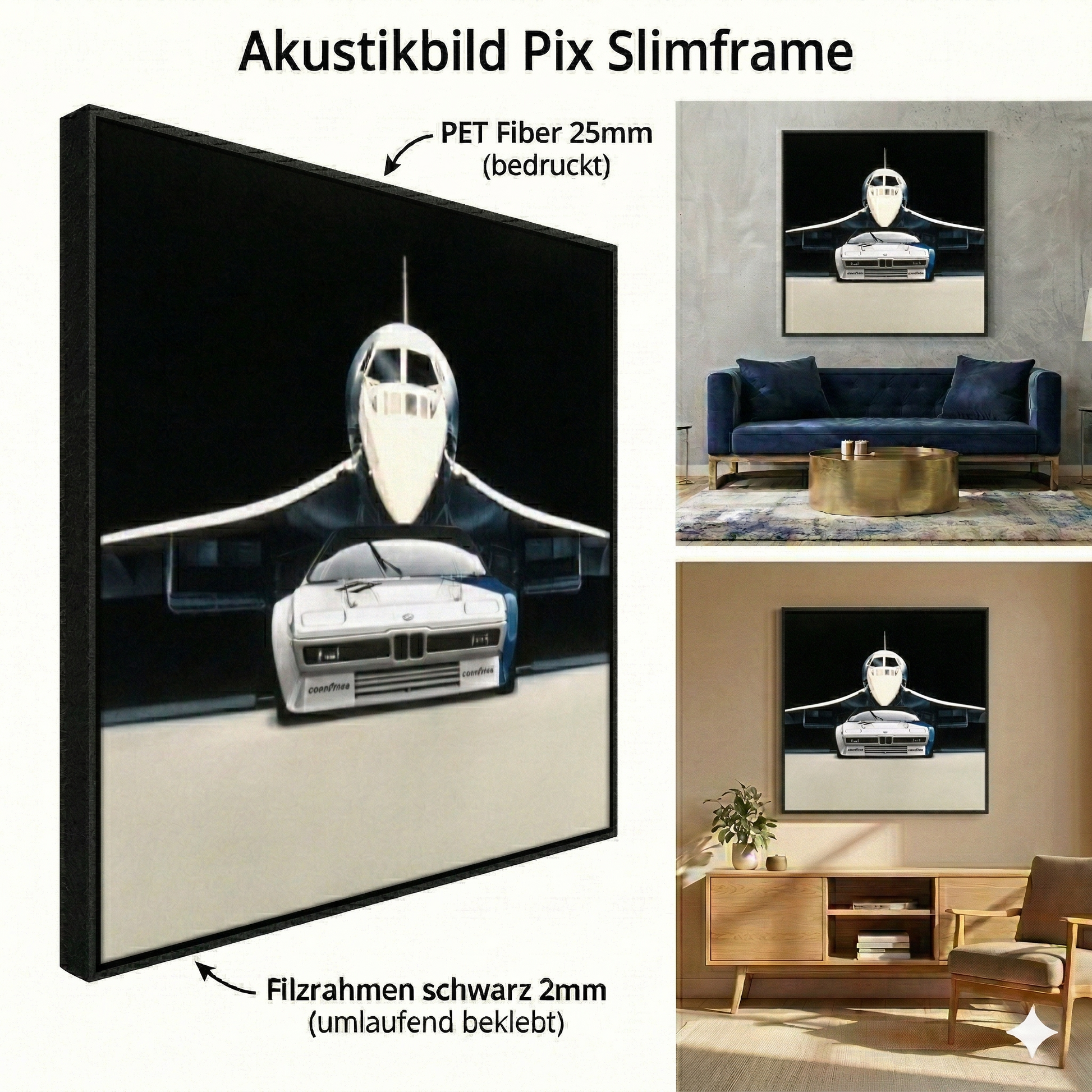

The front of the 25 mm PET absorber is printed directly. A black felt strip approximately 2 mm thick wraps around every side edge. Its 25 mm width covers the full absorber depth; only a fine black outline is visible from the front.
- 25 mm PET
- Direct print
- Black felt · approx. 2 mm
YOUR ROOM. YOUR EXPRESSION.
A focal point with acoustics in mind.

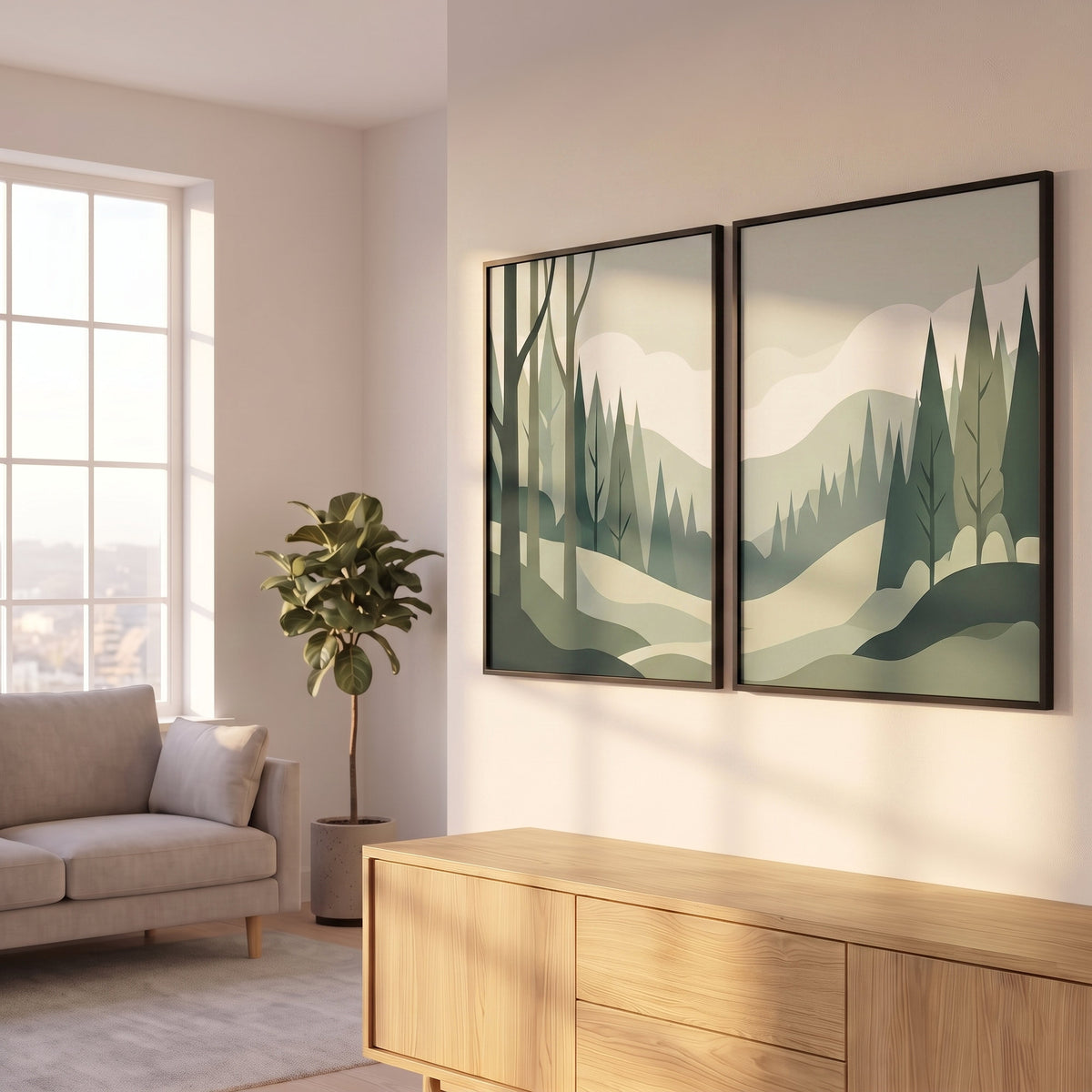

A landscape for your workspace. A personal photograph for your home. Or artwork that reflects your business. PIX Slim Frame combines individual design with sound-absorbing material.
The absorber area needed depends on the room and its use. One picture does not replace acoustic planning for a large room.
How much absorber area do I need? →
FROM YOUR IDEA TO YOUR WALL
Your picture starts with your idea.
Find your format
Choose a standard format or tell us your preferred dimensions. You can also request several pictures together.
Bring your artwork
Link your image file in the enquiry or simply describe your idea. You do not need a finished print file to get in touch.
Agree the details
We discuss size, quantity and artwork with you and provide a quote for your acoustic picture.
FIVE FORMATS. YOUR POSSIBILITIES.
Which format fits your wall?
The shapes show the five standard formats at the same scale. Every PET absorber is 25 mm deep, with the black felt strip wrapped around its side edges.
Your custom size
Need different dimensions? Choose the custom size and tell us the width and height in your enquiry.
INSTALLATION WITH UHU MOUNTING ADHESIVE
A place of its own on your wall.
PIX Slim Frame is normally installed using UHU mounting adhesive. Plan the position and alignment first. The adhesive must be suitable for the wall surface; follow the instructions for the specific adhesive used.
Mounting materials are selected separately. The bond is permanent; residue-free removal cannot be guaranteed. We agree the items included in your quote.
GOOD TO KNOW
Any questions about your picture?
Can I use my own photograph?
Yes. PIX Slim Frame is printed with your own artwork. Use the original file where possible and make sure you have the necessary usage rights. We discuss whether your file is suitable for the requested size.
What if my print file is not ready?
Describe your idea in the enquiry. If you already have a file, you can add a download link. File format, resolution and cropping are agreed for your chosen size.
Can I request custom dimensions?
Yes. Select the custom size and include width, height and quantity in your message. This variant is priced per square metre; you receive a quote for your actual dimensions.
How many pictures does my room need?
This depends on room size, surfaces and use. Try the acoustic check for initial guidance. For offices, schools and other larger spaces, we can plan the absorber area together.
How is PIX Slim Frame installed?
Normally with UHU mounting adhesive on a suitable wall surface. Follow the instructions for the specific adhesive. The bond is permanent; removal may leave residue or damage the surface.
How long does production take?
The current lead time is shown above by the format selection. We agree the schedule for your artwork and quantity in your quote.
How does Slim Frame differ from PIX Slim?
Both use a directly printed PET absorber with a depth of 25 mm. PIX Slim has an exposed PET edge. Slim Frame adds a black felt strip approximately 2 mm thick, covering the entire side edge.
IT STARTS WITH YOUR ARTWORK
What would you like on your wall?
A photo, a graphic or just an idea: tell us about it. Your selected format is included in the enquiry.
Format and quantity · Email · Message · Optional file link
Auf einen Blick
Maße und Werte
- Maße
- 1200 × 600 mm
- Absorberfläche
- 0,72 m²

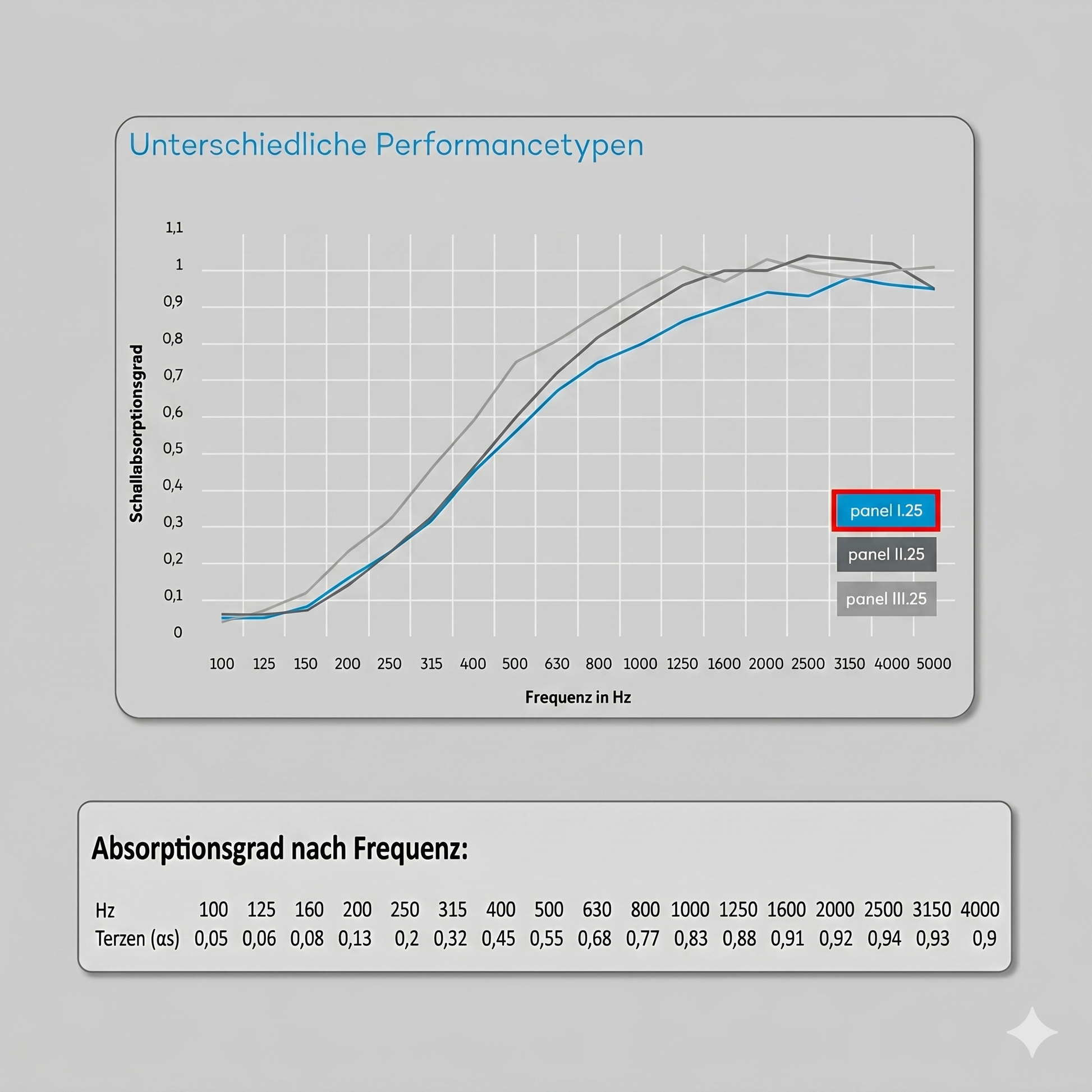

- Schallabsorption
- Class Dαw 0,55
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
Gut zu wissen
Herkunft
-
In Europa gefertigt
Alle FENNEXT-Produkte werden in Europa gefertigt.
Bewertungen
Das sagen unsere Kunden
Recommendations
More from Acoustic art panels
Technische Daten
- Produktlinie
- Pix · Akustikbild · Rechteck
- Maße
- 1200 × 600 × 25 mm
- Absorberfläche
- 0.72 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Angaben gelten für die ausgewählte Variante (1200×600mm (2:1) / 25mm).
- Produktlinie
- Pix · Akustikbild · Rechteck
- Maße
- 1200 × 600 × 25 mm
- Absorberfläche
- 0.72 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Angaben gelten für die ausgewählte Variante (1200×600mm (2:1) / 25mm).
- Produktlinie
- Pix · Akustikbild · Rechteck
- Maße
- 900 × 600 × 25 mm
- Absorberfläche
- 0.54 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Angaben gelten für die ausgewählte Variante (900×600mm (3:2) / 25mm).
- Produktlinie
- Pix · Akustikbild · Rechteck
- Maße
- 600 × 600 × 25 mm
- Absorberfläche
- 0.36 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Angaben gelten für die ausgewählte Variante (600×600mm (1:1) / 25mm).
- Produktlinie
- Pix · Akustikbild · Rechteck
- Maße
- 900 × 900 × 25 mm
- Absorberfläche
- 0.81 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Angaben gelten für die ausgewählte Variante (900×900mm (1:1) / 25mm).
- Produktlinie
- Pix · Akustikbild · Rechteck
- Maße
- 1067 × 600 × 25 mm
- Absorberfläche
- 0.64 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Angaben gelten für die ausgewählte Variante (1067×600mm (16:9) / 25mm).
- Produktlinie
- Pix · Akustikbild · Rechteck
- Absorberfläche
- 1.0 m²
- Material
- PET Solid-2K White 25mm bedruckt
- Schallabsorption
- Class D · αw 0.55 · Supportive (Kat. I)
- Brandverhalten
- B-s1,d0 (EN 13501-1) / B1 (DIN 4102-1) - Einstufung unbedrucktes Grundmaterial
- Herkunft
- In Europa gefertigt
Exakte Maße, Gewicht und Absorptionswerte je Modell auf Anfrage. Wir behaupten keine Brandschutzklasse für die Standardausführung.
Lieferumfang
- Pix Slimframe acoustic art panel (your own design) in der gewählten Ausführung
- Montageanleitung
Versand & Rückgabe
- Lieferzeit
- approx. 3 weeks (made to order)
- Versandkosten
- Versandkosten laut Versandtabelle
- Rückgabe
- Custom-made to order — exempt from the right of withdrawal
Angaben gelten für die ausgewählte Variante (1200×600mm (2:1) / 25mm).
